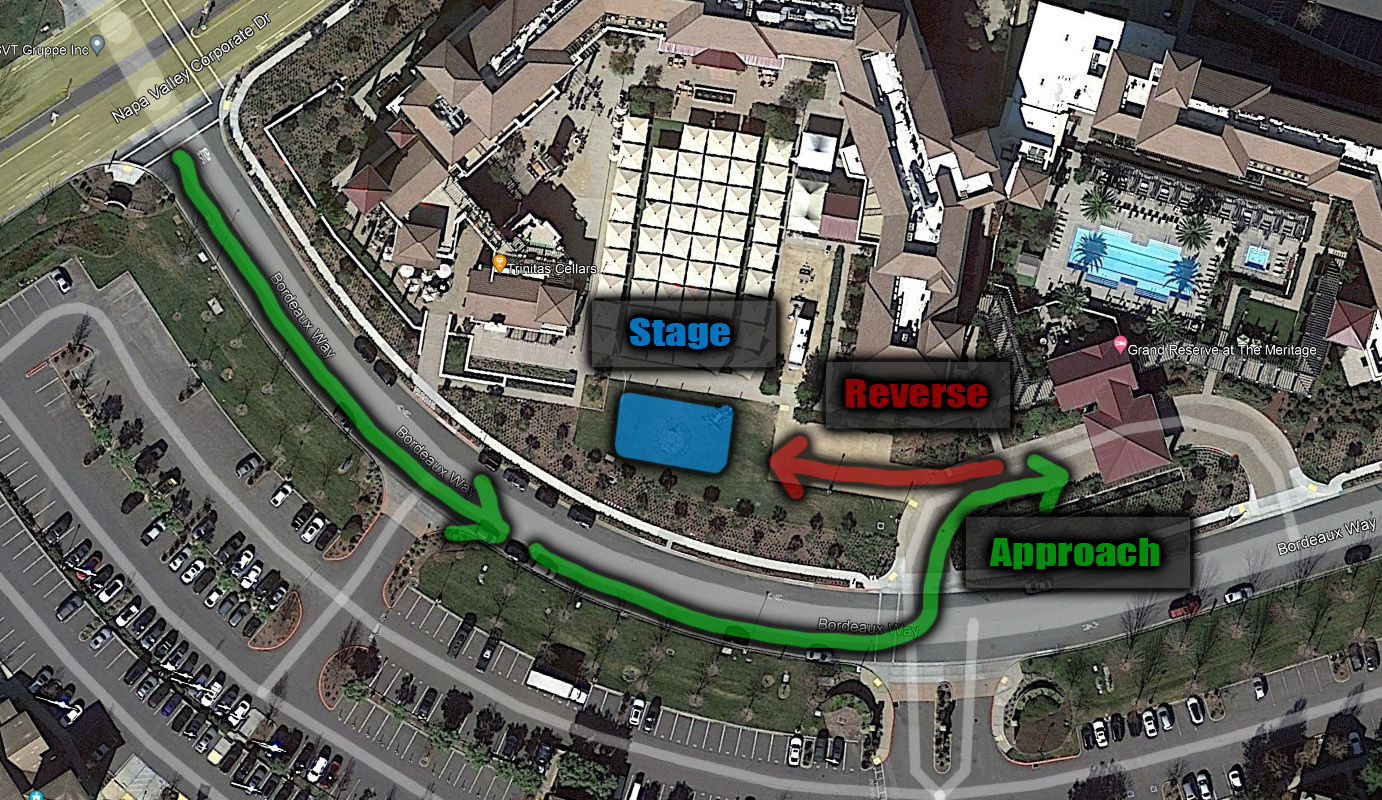

MAP OF LOAD-IN LOCATION
FOH Audio & Lighting Position
Center @ 70 ft. from stage. Cable run ~100’
Stage Dimensions (VIEW STAGE PLOT PDF)
32’ wide + 8’ wings SL and SR x 24’ deep x 4’ high (with shade roof)
Main Audio System
1 Midas Pro2c Digital Console with DL251 I/O Box – 48 In / 16 Out 16 JBL SRX910LA – Dual 10” Line Array – 8 Per Side
4 JBL SRX928SP – Powered Dual 18″ Subs
2 Meyer Sound UPA-1P Front Fill speakers
Monitor System
1 Avid SC48 Digital Console – 48 In / 32 Out
1 48 Channel Analog Split
8 Meyer Sound MJF-210 – Dual 10″ Monitor wedges 1 Meyer Sound USW-1P – Dual 15″ Drum sub
Wireless
4 Shure UHF-R Wireless
4 Shure UR2 Handheld mics with SM58 heads 4 Shure UR1 Belt packs
Lighting System (VIEW STAGE PLOT PDF)
1 Console – Avolites Titan Mobile + Dell Windows 11 touchscreen laptop 10 SHEHDS Waterproof LED Par 18x18W 6in1 – (10 Ch mode)
8 SHEHDS JMS Webb Big Bee Eye 19x20W – (25 Ch mode)
4 SHEHDS Hybrid 200W 3in1 – (18 Ch mode)
Power
1 100A 3 phase camlock disconnect – 30’ off SR 2 50A 2 phase twist-lock services back-stage
8 20A circuits on SL
8 20A circuits on SR
1 20A circuit at FOH
